Electric
motorized bug wiper
|
|
|
|
|
* Electric winch provides quick, effortless retrieval
* Fast; takes approximately 20 seconds out
* Only one winch needed
* Operates at airspeeds up to 140 km/h
* Minimum power needs; current drain is 3-5amps.
* Cable is multi-wire cable; superior for spooling
* Winch and cable guide assembly easy to mount
* Wipers do have rigid construction
|
(suurenna kuvat
klikkaamalla)

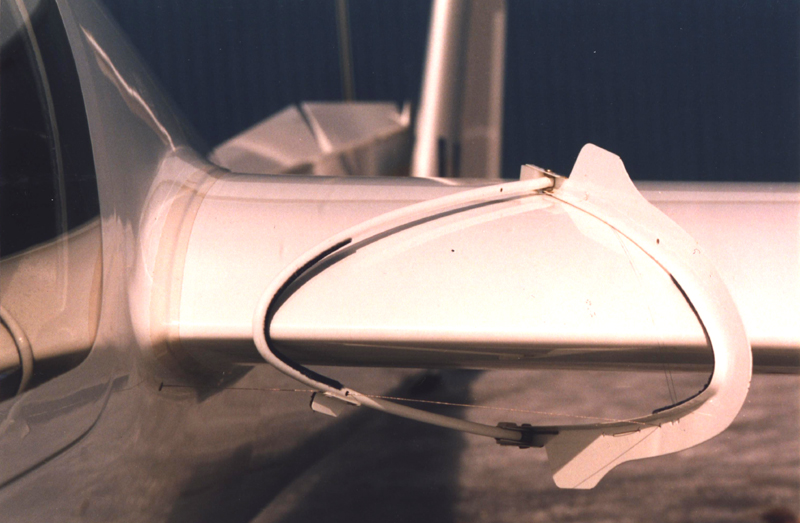

Winch mounted on LS 6

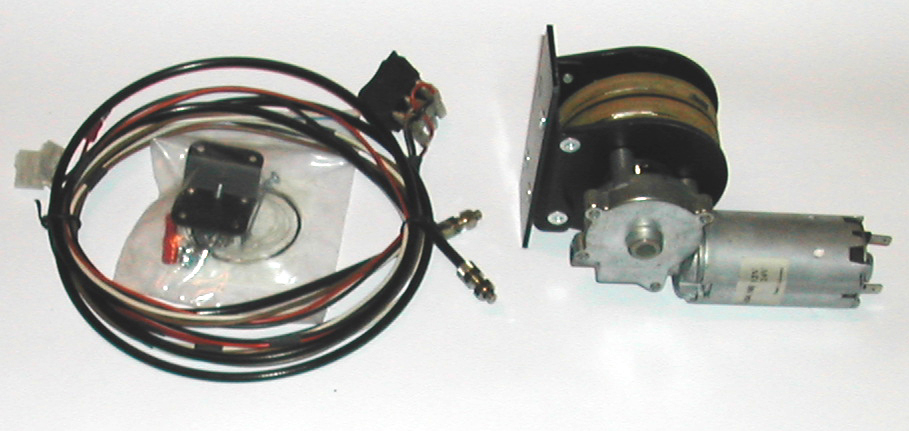

Electric winch kit |
|
|
New manual winch concept
|
|
|
|
* Economical, easy to use
* Compact
design. flat and small
* Reliable disk brake |
|
(suurenna kuvat
klikkaamalla)
 |
 |
 |
Flat and
small
170x85x30mm (+levers) |
Turn on disk
brake |
Manual winch
kit |
|
|
|
|

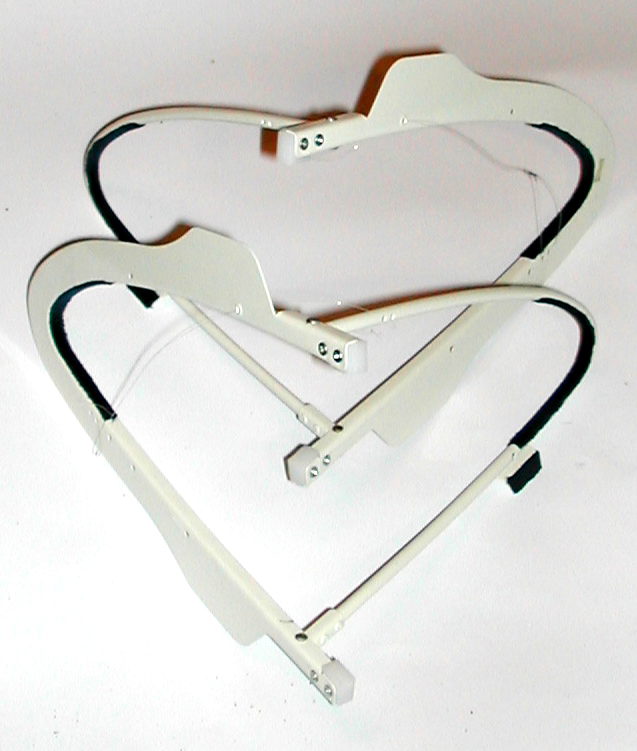

High quality Wipers
|
|
|
|
* Wipers do have
rigid steel plate/aluminium tube construction
* white powder epoxy coating
* wing guides are made of plastic
* guiding surfaces coated with velvet
|
Wipers are
available in 3 sizes |
Size a |
Size b |
Size c |
- Discus
- Ventus
- LS6 & 8
- Ventus2
- Discus2
- LAK 17 & 19
- ASW 22, ASH25
- Nimbus 3&4
- etc |
- Pik 20
- LS 3
- ASW 24
- ASG29 |
- Janus
- Std Cirrus
- LS1 |
|
(suurenna kuvat
klikkaamalla)
 |
|
|
Mounting and Users manuals
|
|
|
|
Electric bug wiper
Manual bug wiper |
|
|
|
|
